While masonry mortar makes up only a small percentage of the total surface area of a masonry wall, its finished appearance in a structure complements or contrasts masonry units. When the color of the mortar meets expectations, the resulting assemblage completes the designer’s vision. When the mortar color does not meet expectations, the designer’s vision is compromised.

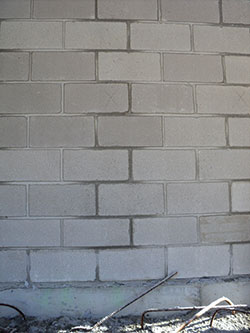

|Leading edge discoloration of a mortar patch – over tooling??????|
|Extended curing times due to grouted cells??|

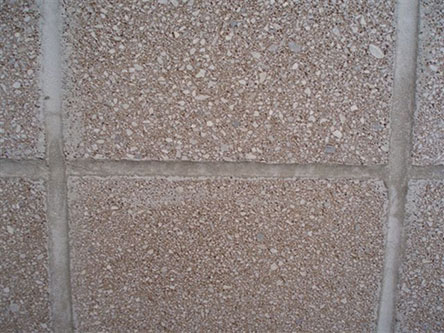

One undesirable color variation in masonry mortar joints is surface “mottling.”?? Similar to mottling in concrete surfaces, mottling on mortar joints is best described as generally darkened or discolored patches or areas that are adjacent to, or within lighter colored mortar on the surface of mortar joints. Mottling generally appears during the construction phase of the project and may or may not be associated with inconsistent mortar composition. Such variation can be so random in a head or bed joint that the mortar would have to be striped or swirled on the mason’s mortar board or trowel during installation – a consistency issue easily identified by the training of an experienced mason.
Surface mottling of masonry mortar occurs when on-site conditions and construction practices cause the extention or premature termination of the cement hydration. Densifying of the mortar at the surface of the mortar joint during finishing practices also can cause this surface condition. Hydration of portland cement cannot proceed if water is unavailable, making the mortar joint darker than desired. Conversely, if additional water is available during the curing process the cement can over-hydrate, yielding a lighter-than-expected result. Generally, the higher the water content in the mortar, the lighter the mortar. Mottling can manifest itself across the entire surface of the mortar joint or even in small, irregular patches.
This condition of mortar joints is more common when using low initial rate of absorption and/or water repellent masonry units. In general, these units tend to repel water, which forces the water that would normally be absorbed into the masonry unit to stay in or exit through the mortar joint. This can lead to higher water contents in the mortar. To help mitigate these issues, the mortar specified for these types of masonry units should match the density and absorption properties of the masonry units as closely as possible. Mortars used for this application should, generally, have a low water retention and contain a water repellent admixture to properly match the masonry unit.
If the masonry unit is a polished block or glazed brick, great care should be taken in the removal of any fresh?? mortar smears as soon as possible. If the mortar smears are removed by rubbing the units with a rag or towel directly after tooling, mortar material and surface water adhered to the rag can be transferred to the mortar surface. That can contribute to surface mottling. For densified or glazed masonry units, the use of an acrylic finishing tool is generally more successful than using metal finishing tools.
|Cresco Concrete Products’ Premocoat Bonder is used as an adhesion promoter for cement based coatings and an admixture to enhance UV and moisture resistance. Premocoat Sealer is a clear, acrylic sealer used to enhance the moisture resistance of finished cementitious surfaces or for making colored surfaces more vibrant and glossy.
Cresco Concrete Products manufacturers Liteblok dry stacked, interlocking green building block; Litecast and Premocrete precast concrete fencing; lightweight air conditioner pads; lightweight pier and wall caps; and fastening systems. Cresco also offers cast stone products including accent blocks, address blocks, balustrades, bollards, columns, crown molding, entry ways, fireplaces, keystones, mantels, planters, pool coping, signs, window surrounds and windowsills.
For more information, visit www.CrescoConcrete.com.
Another contributing factor to this condition is how often the mortar joints are addressed during the tooling of the wall. The mortar joints should be tooled when thumbprint hard. If the mortar joints are tooled when they are beyond thumbprint hard, more effort is required to achieve the desired finish, which densifies the mortar at the surface leading to dark discoloration. This dark discoloration can also be noted in mortar overlays that tend to dry out quickly, due to their shallow depth.
The addition of core fill grout in a concrete masonry unit wall can lead to color variance in the mortar joints by increasing the free water available to the mortar during the curing process. Initially, when grout is poured into masonry walls, the mortar and block appear to be wet. The moisture absorption from the grout into the block and mortar helps promote a good strong bond between the block, grout and mortar.
However, the additional water provided by the grout can result in inhomogeneous paste where some areas hydrate more due to the presence of excess water, while other areas dry out. Excess moisture can migrate through the mortar and pick up soluble salts, such as calcium hydroxide, depositing them on the surface of the mortar upon drying. Exposure of calcium hydroxide to CO2 in the atmosphere rapidly converts the calcium hydroxide to calcium carbonate, which leads to light discoloration.

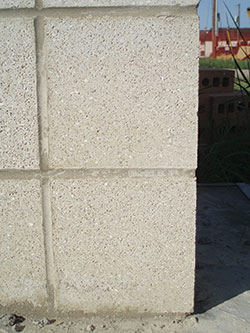

|Removal of mottling by hand abrasion
